Space Saving Semi Automatic Puzzle Parking System with 6 Layers and 10350mm Height

Name: Space Saving Semi Automatic Puzzle Parking System with 6 Layers and 10350mm Height
Brand: wintai
Price: 3 USD

Quality Space Saving Semi Automatic Puzzle Parking System with 6 Layers and 10350mm Height for sale

Place of Origin : Guangdong, China

Brand Name : wintai

Model Number : PSH

Packaging Details : standard export package

Supply Ability : 1000 Set/Sets per Month

MOQ : 10 sets

Price : $3,900.00/sets >=10 sets

Certification : CE

Payment Terms : L/C, D/A, D/P, T/T

Delivery Time : 15

Type : Parking Lift

Warranty : 12 Months

Loading Capacity : 2000KGS or customized

length of garage : 6200/6400/6500mm

Height of garage : 10350mm

Vehicle Size Available : 5300mm

Lifting capacity of each layer : 2000kgs or above

Port : Guangzhou/Shenzhen

Contact Now

Space Saving Semi Automatic Puzzle Parking System with 6 Layers and 10350mm Height

Product Overview

Three to six layers smart parking lift with lifting and traversing multilevel car parking semi automatic puzzle parking system.

This system adopts carrier plate moving up and down or horizontally to store or access cars. It has various forms and can be arbitrarily combined and arranged according to different terrains and spaces, with strong adaptability to the site. The application of lifting and horizontal parking equipment is very common.

Working Principle

Each parking place has a carrier plate. There is an empty place in each layer except the top one. The top layer can descend only, the first layer can move horizontally only, while the middle layers can move up and down and horizontally. The required car moves to the ground floor through the movement of the carrier plate, then the car owner can access the car.

Key Features

Simple structure with modular design and production
Strong universality and stable performance
Extremely low failure rate
Automation system with fault diagnosis and display functions
Easy troubleshooting in the shortest possible time

Application Places

Residential districts, hospitals, hotels, schools, and other outdoor parking areas.

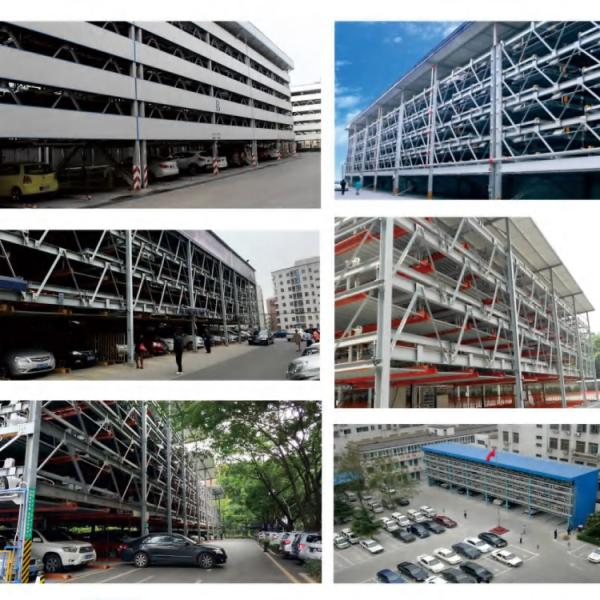

Product Images

Space Saving Semi Automatic Puzzle Parking System with 6 Layers and 10350mm Height

Technical Specifications

Specification	Value
Type	Parking Lift
Place of Origin	China, Guangdong
Brand Name	Wintai
Model Number	PSH
Warranty	12 Months
Loading Capacity	2000 KGS or customized
Length of Garage	6200/6400/6500mm
Height of Garage	10350mm
Vehicle Size Available	5300mm
Lifting Capacity of Each Layer	2000kgs or above
